Key Product Highlights
- Premium Kubota Diesel Power: Features a reliable 3-cylinder Kubota engine built to handle high-demand attachments and continuous, heavy dirt-moving tasks
- True Self-Leveling Boom: Dual lift cylinder arms automatically keep your bucket or pallet forks completely level as you raise the lift arms, preventing dangerous material spillback toward the operator panel.
- Customizable Hydraulic Distribution: Features an intelligent control center allowing you to distribute hydraulic oil flow on the fly. Prioritize extra oil to your heavy attachments for tough digging or route it back to the tracks for high-speed transport.
- Exceptional Stability & Bite: Wide 9-inch tracks create an exceptionally stable footprint over uneven terrain, steep grades, and slick commercial landscaping spaces.
- Universal Common Attachment Interface: Built with a standard mini-skid quick-attach plate that accommodates your full lineup of attachments (including grapples, post-hole diggers, and pallet forks) seamlessly.
Technical Specifications
| Feature | Specification |
| Engine Plant | 25 HP Kubota D1105 3-Cylinder Liquid-Cooled Diesel |
| Machine Weight | 2,525 lbs operating footprint |
| Tipping Load Capacity | 1,420 lbs |
| Rated Operating Capacity (ROC) | 489 to 497 lbs (Up to 631 lbs depending on attachment configuration) |
| Track System Profile | Wide 9.1″ steel-embedded rubber tracks |
| Machine Dimensions | 41.2″ Wide x 63.3″ Long (Without attachment) |
| Max Dumping Height | 48.8 Inches at a 45-degree dump angle |
| Fuel Tank Capacity | Large 10-Gallon tank for full-day operation |
Primary Contractor & Landscaping Applications
- Residential Hardscaping: Hauling heavy limestone bedding, moving pavers, and pushing high-volume aggregates into narrow backyards.
- Trenching & Utility Prep: Driving hydraulic utility trenchers, ground augers, or rock breakers cleanly alongside structures.
- Site Grading & Landscaping: Leveling out topsoil yards, spreading landscape mulch mounds, and fixing driveway washouts smoothly using the self-leveling boom.
- Material Moving: Transporting boxed wholesale nursery plants, heavy root balls, or commercial materials across unpaved terrain.
Important Rental Policies & Fine Print
- Fuel Requirements: This machine operates on Diesel Fuel only. It is provided with a full tank and must be returned full to prevent a refueling fee of $8/gallon.
- Transport Requirements: Weighing over 2,500 lbs empty (and over 3,000 lbs with a heavy attachment), this machine requires a minimum 1/2-ton truck (F-150 / Silverado 1500) paired with a dual-axle trailer equipped with functional trailer brakes and a 2-5/16″ ball hitch receiver.

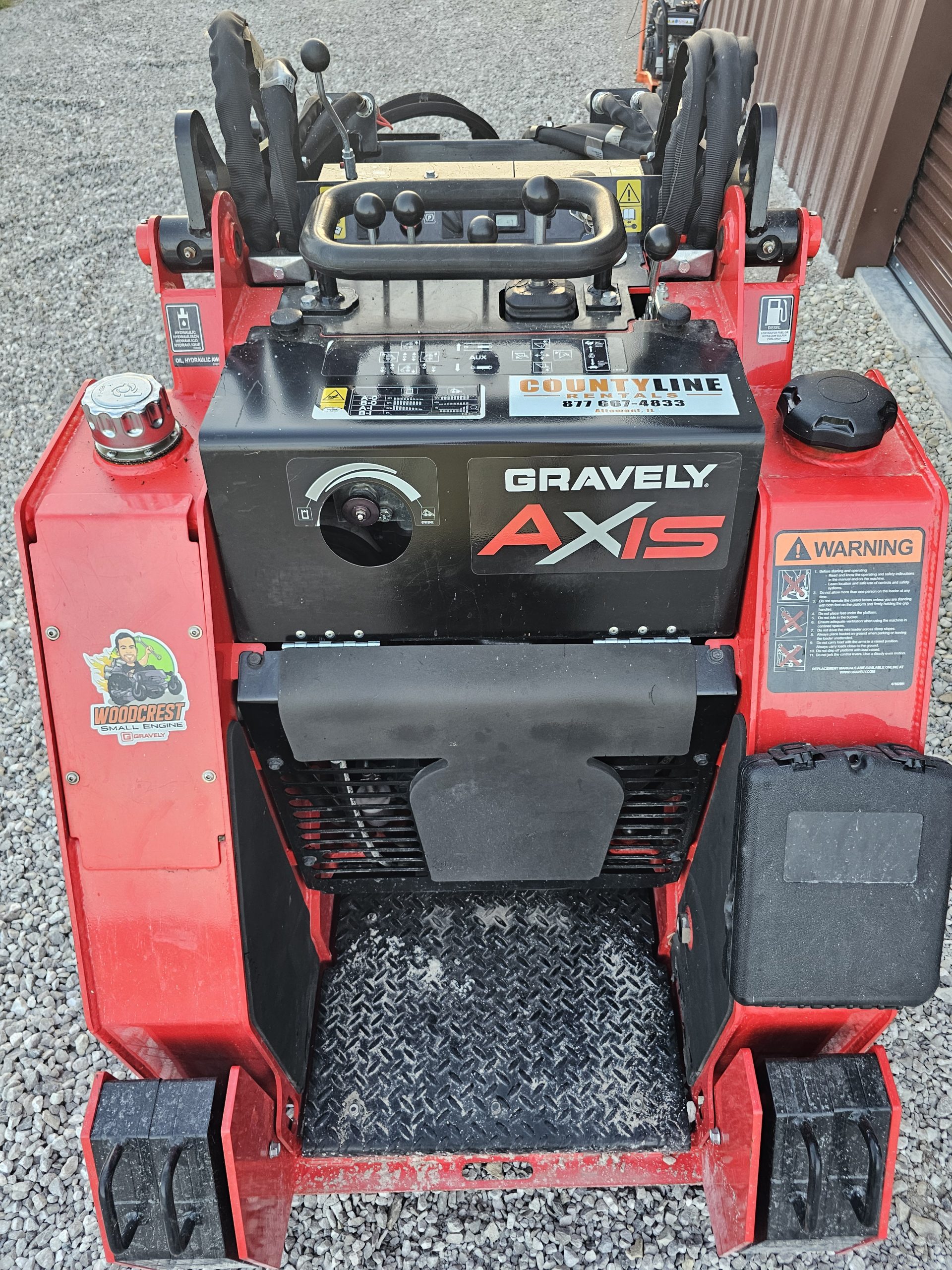

- Operational Setting Note: The hydraulic system features a multi-mode dial (e.g., A0, B1, AZ). If your boom fails to raise, verify the system isn’t locked in “Transport Mode” (B1), which diverts all hydraulic oil away from the loader arms straight to track speed.
- Track Damage Precaution: While highly rugged, steel-embedded tracks can cut or throw if twisted sharply over broken pavement or rebar. Avoid spinning the tracks on concrete surfaces.
