Key Product Highlights

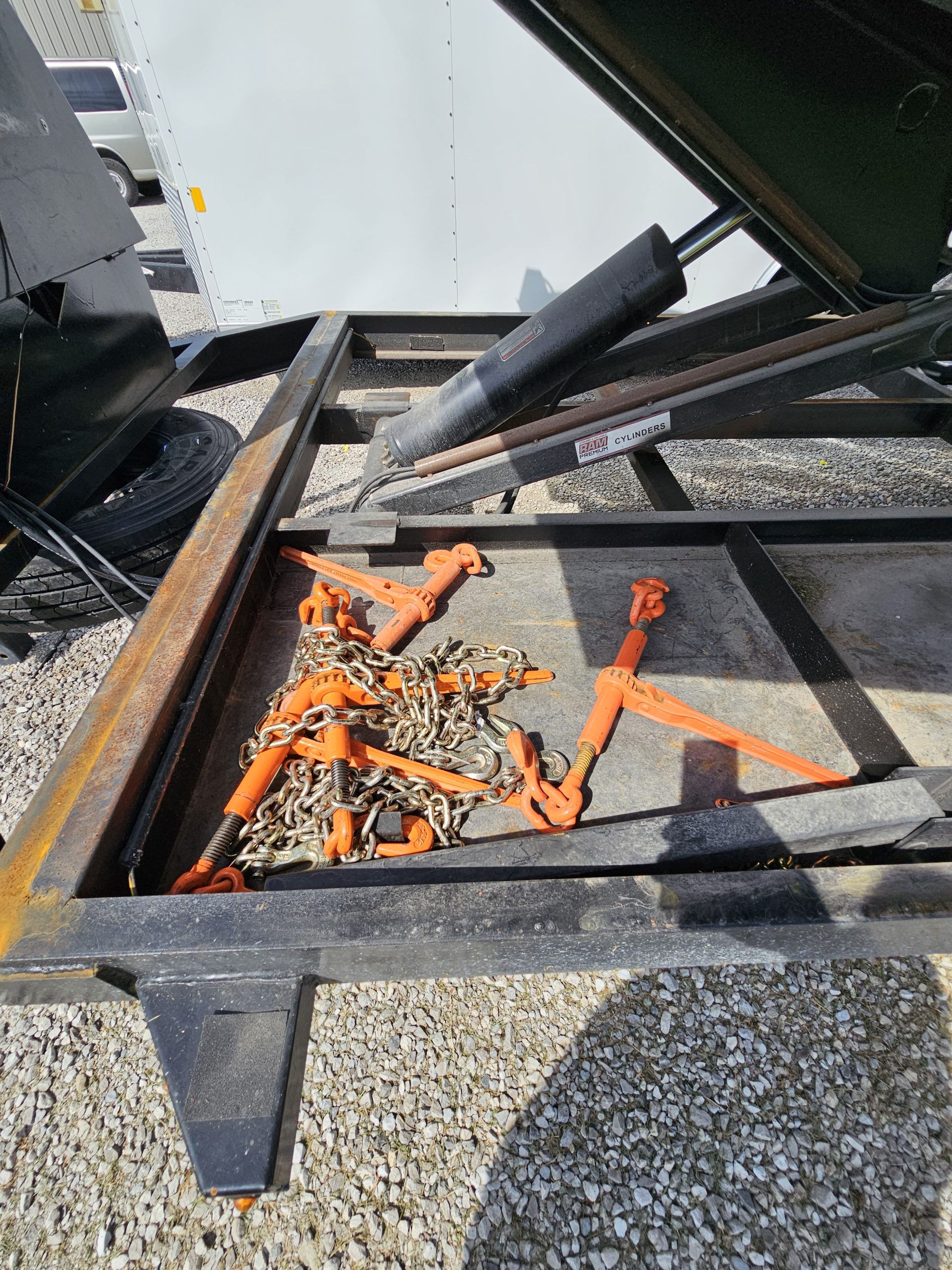

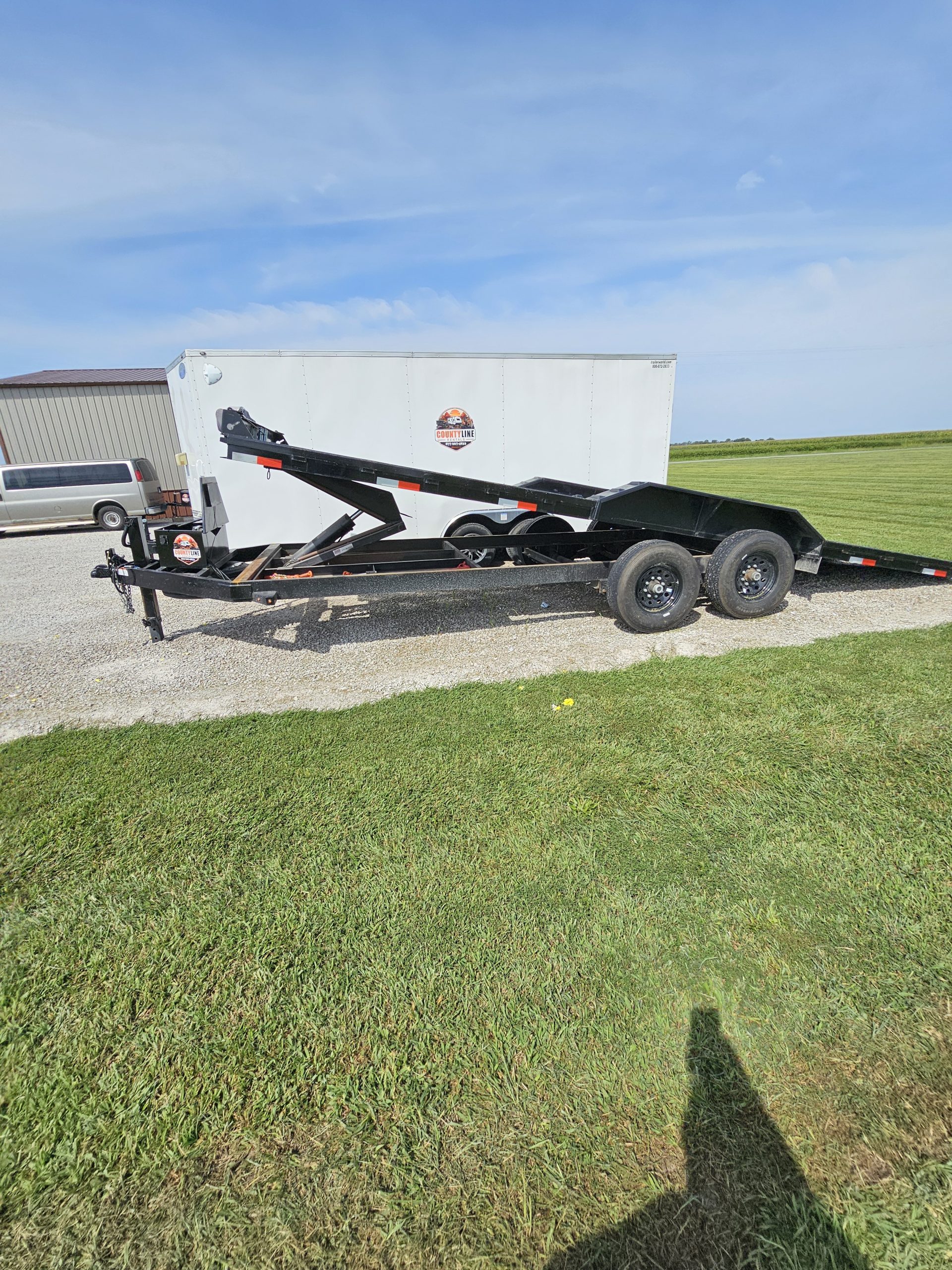

- Wireless Hydraulic Power Tilt: Equipped with a dual-stage hydraulic ram system managed by an on-board deep-cycle battery network. Effortlessly raises and lowers the deck using a convenient wireless remote.
- Heavy-Duty Axles & Braking: Built on top-tier high-capacity electric brake axles paired with a professional slipper-spring or torsion suspension system, providing optimal tracking stability under maximum weight loads
- Rugged Diamond-Plate Steel Floor: Features a commercial 1/8″ diamond-plate steel deck (or optional heavy treated wood) engineered to withstand the brutal scraping of steel tracks, iron buckets, and high-impact point loads
- Drive-Over Steel Fenders: Heavy-duty reinforced drive-over fenders maximize your usable deck space, allowing wide-track machinery and dually trucks to utilize the full width of the trailer effortlessly.

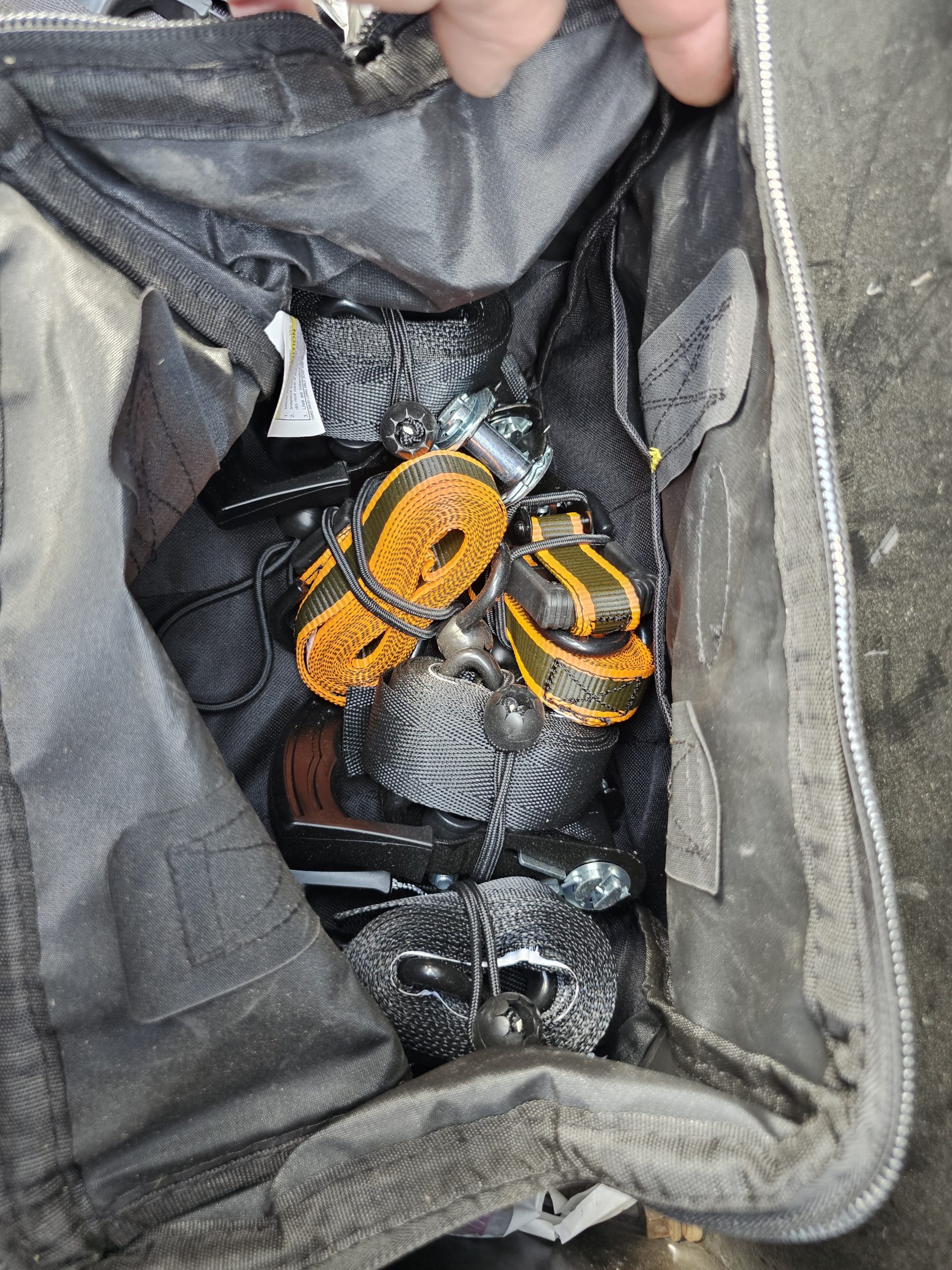

- Industrial Tie-Down Security: Outfitted with robust bull-nose D-rings, thick stake pockets, and an integrated outer rub rail system to give you endless anchor configurations for transport chains and binders.
- 12,000lb Wireless Remote Winch included:
Technical Specifications
| Feature | Specification |
| Total Deck Length | 25 Feet (Full tilt deck layout for maximum clearance) |
| Deck Width | 82″ to 83″ between fenders (Up to 102″ total width with drive-over fenders) |
| Gross Vehicle Weight (GVWR) | 16,000 lbs high-capacity hauling |
| Axle Configuration | Dual 8,000 lb Electric Brake Axles |
| Hydraulic Action | Dual-acting Power Up / Power Down system |

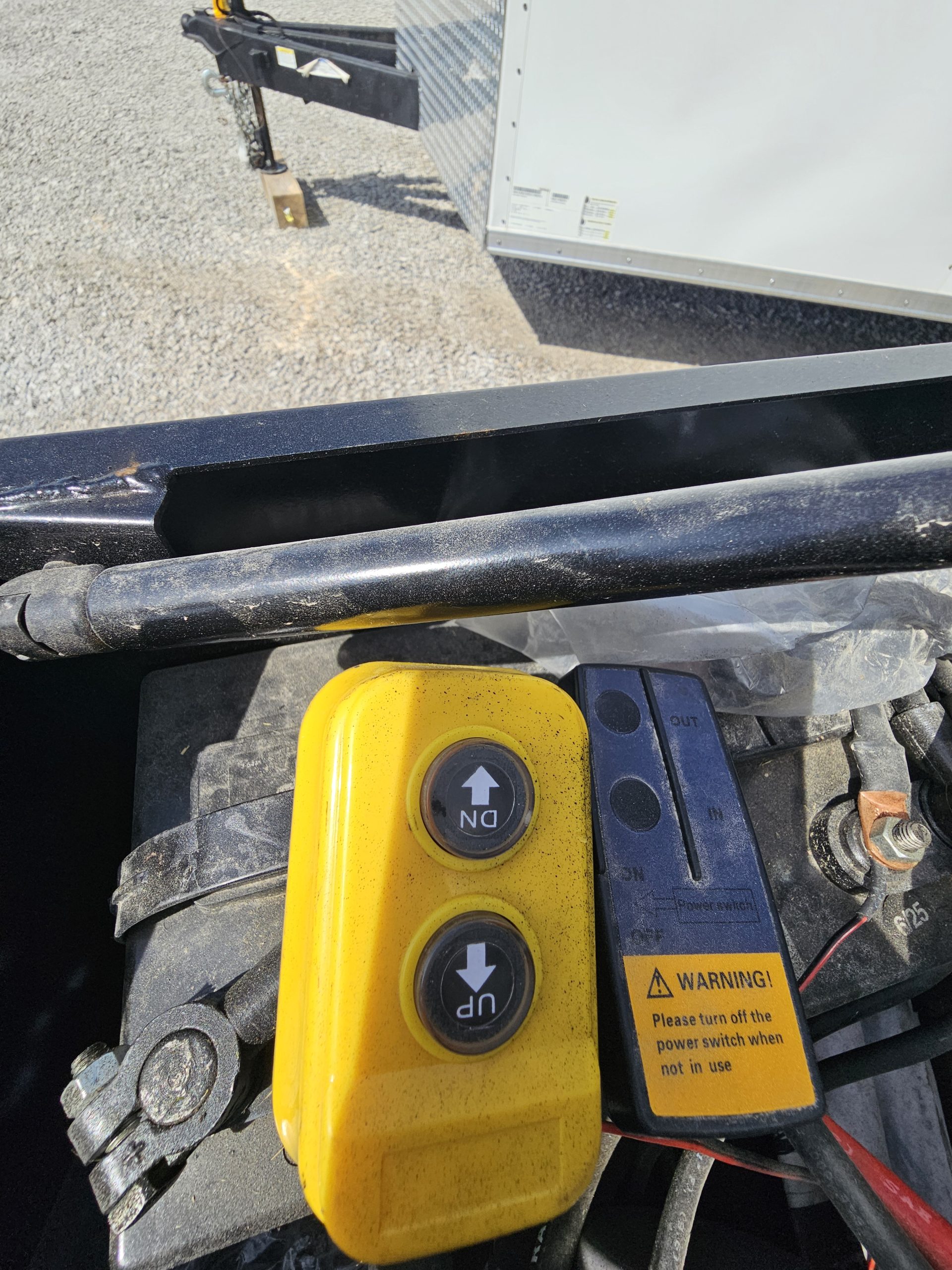

| Control System | Dual-button remote control |
| Hitch Coupler | 2-5/16″ Heavy-Duty Adjustable Coupler (Bumper pull) |
| Lighting System | All-weather, high-visibility flush-mount lifetime LEDs |
Primary Heavy Hauling Applications
- Skid Steers & Track Loaders: Perfect for safely loading rubber-tracked or wheeled skid steers along with heavy attachments.
- Mid-Sized Excavators: Easily transports mini and mid-sized excavators without track damage to the deck edge.
- Tractors & Farm Equipment: Accommodates wide agricultural tractors, hay equipment, and dense industrial implements.
- Low-Clearance Machinery: Ideal for scissor lifts, forklifts, trenchers, paving rollers, or low-slung trucks that typically bottom out on standard pull-out ramps.
Important Rental Policies & Fine Print (For Your Reservety Settings)
- Tow Vehicle Requirements: The renting vehicle must be a minimum 3/4-ton (2500 series) or 1-ton truck equipped with a Class IV/V frame receiver and a fully functioning onboard electric brake controller.
- Electrical Plug: Requires a standard 7-way RV-style round plug to power the running lights and activate the trailer’s electric brakes.
- Load Balancing Warning: Machinery must always be loaded facing forward to place roughly 10% to 15% of the total cargo weight directly on the tongue to prevent dangerous high-speed trailer sway.
- Battery Maintenance: The hydraulic pump is self-contained, but for long multi-day rentals, the trailer should remain plugged into the towing vehicle’s 7-way harness while driving to trickle-charge the tilt battery.
- Will require proof of insurance for the Tow Vehicle
