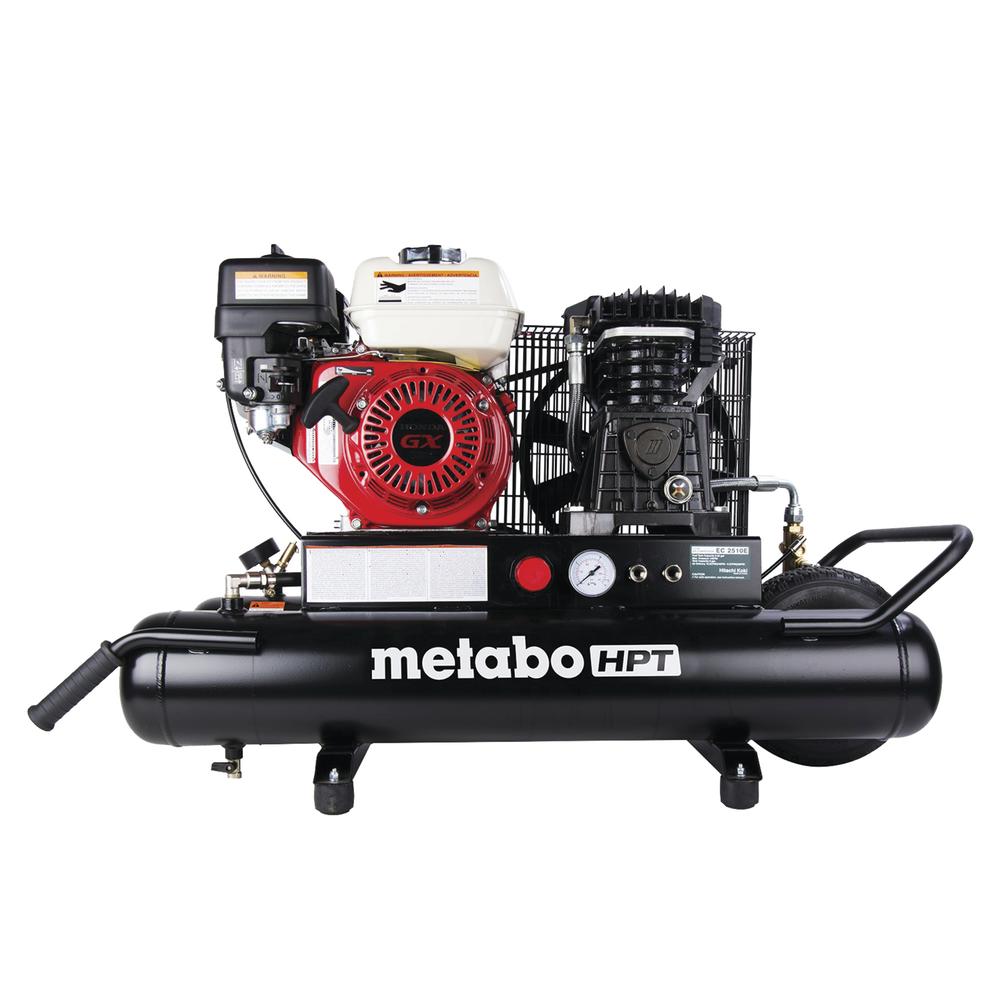

Key Product Highlights
- Premium Honda GX Engine: Outfitted with a 5.5 HP industrial Honda engine, widely recognized as the industry standard for reliable, easy-pull starting and rugged job site longevity
- Run Multiple Nailers Simultaneously: Delivers up to 9.5 CFM at 90 PSI, allowing your crew to operate up to 3 framing nailers or 4 roofing/siding nailers at once.
- Pump: Features a low-RPM, oil-lubricated cast iron pump that reduces operational heat, maximizes compression efficiency, and minimizes oil carryover.
- Protected Control Center: The baseplate-integrated control panel centralizes your gauges and regulators, shielding vital components from accidental drop or impact damage on-site.
- Smart Throttle & Cooling: Equipped with a highly reliable pneumatic throttle control and an air-cooled after-cooler to lower moisture buildup inside your lines.
Technical Specifications
| Feature | Specification |
| Engine / Motor | 5.5 Net HP Honda GX Series (196cc) |
| Tank Capacity | 8 Gallons (Twin Side-by-Side Wheelbarrow) |
| Maximum Pressure | 145 PSI (Cycles automatically from 116–145 PSI) |
| Air Delivery Rate (CFM) | 9.3 to 9.5 CFM @ 90 PSI / 9.0 CFM @ 100 PSI |
| Pump Lubrication | Oil-Lubricated with an oversized sight glass window |
| Air Outlets | Dual 1/4″ quick-connect couplers |
| Total Weight | Approx. 144 to 158 lbs (Heavy-duty contractor grade) |
